Parth Engineers & Consultant
Parth Engineers & Consultant, one of the leading manufacturer and exporter of Pharmaceutical Machinery and Equipment required for pharma production and packaging.
Business Type:Manufacturer
Country/Region:India
Ddu Verified
HOT Rank

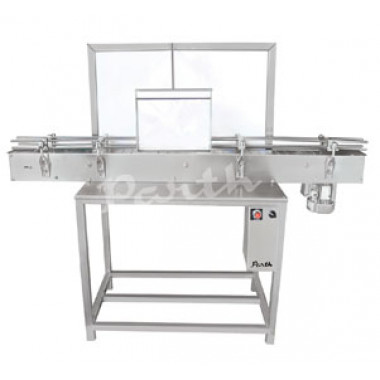

It works on the basic principle of inspection of the filled bottle which comes from Filling Line.There are three conveyors on the same line. The center conveyor is to pass the bottle labeling purpose. Remaining two Conveyors is for inspection purpose. When the filled comes from filling line, bottle is diverted to inspection and stopped there for manual inspection. After the inspection, inspected bottle is to be put on Center Conveyor for labeling purpose.
There is black & white back-ground with tube light for manual inspection of the filled bottle.
TECHNICAL SPECIFICATION:| Direction | Left to right | ||
| Operator provison. | 4 nos. sitting provison | ||
| Power Characteristics** | 0.5 HP/220 V/50 Hz | ||
| Height of Disk** | 860 mm to 910 mm | ||
| Machine Dimensions** | 1500 x 760 x 1500 | ||
| Case dimensions | 1700 x 960 x 1600 | ||
| Net weight | 175 Kgs. | ||
| Gross Weight | 350 Kgs. | ||
| Container Size** | Round Shape | Ø 22 mm to Ø 80 mm Respectively height 50 mm to 110 mm (Height option for other Vial height available) | |
