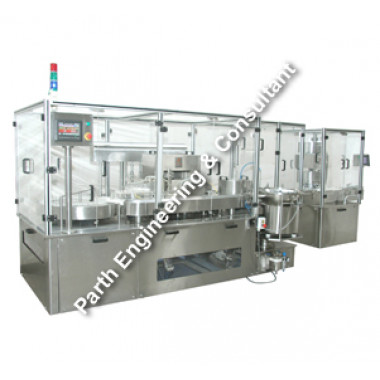

SERVO BASE PLC CONTROL VIAL FILLING WITH PICK AND PLACE TYPE STOPPERING MACHINE- Parth Engineers & Consultant

Parth Engineers & Consultant

Business Type:Manufacturer

Country/Region:India

Ddu Verified

HOT Rank

8/10

TECHNICAL SPECIFICATION:

Model	Twin Head	Four Head	Six Head	Eight Head
Output/Hour	4000/Hour	8000/Hour	12000/Hour	16000/Hour
Capacity	1ml to 50ml With the help of change parts
Accuracy	± 1 % Filling accuracy on single doze
Electrical Rating – Main Machine Motor -Turn Table	3HP(2.2Kw) 3.5 HP (2.6 Kw) 0.5 HP (0.38 Kw)
Power Required	230 Volts, Single Phase. 50 Hz (4 wire system)
Conveyor Height	780mm to 860mm adjustable
Input Specifications	Dia- 16mm x 55 mm Height- 40 mm toll 0 mm
Stopper	13mm, or 20mm-Special Case-32mm
Filling Range	2 ml To 50ml in Single stroke

SALIENT FEATURES:

Total Controls on your figure tips.
Servo base PLC controls.
Volume adjustment by pic controls .
Provision of Manually fine volume adjustment
Higher accuracy with higher speed due to servo control continuous motion.
Provision of half and full stoppering.
Inbuilt Scrambler & Unscr ally or fully stopper filled vials.
Vial filling machine shall be equipped with eject collect tray for un stopper Vials.
Provision for inert gas purging – pre and post the filling.
Rejected without stopper vial shall be store in a safe condition,
Vial filling machine shall perform the following functions.
Vial half stoppering.
Nitrogen purging (pre and post fill).
Fallen vial eject, no stopper eject
ambler with rejected vial collect facility.
Rigid vibration free construction for trouble free performance
Pick and place type stoppering machine
Vial filling machine shall be equipped with pumps with an accuracy of 0.5 on the fill volume.
Vial filling machine shall be capable parti
