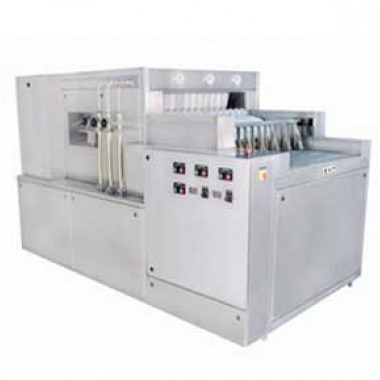

HIGH SPEED LINEAR BOTTLE WASHING MACHINE MODEL PLBW-240

  • Favorite
Parth Engineers & Consultant

Business Type:Manufacturer

Country/Region:India

Ddu Verified

HOT Rank

6/10

Product Information

  • Certification:ISO
  • Warranty:1 year

Description

DESCRIPTION:

High Speed Linear Bottle Washing Machine is most ideal for Round Bottles and finds wide application in PHARMA, FOOD & BEVERAGES INDUSTRIES. The automatic loading arrangement facilities loading of bottles on to SS wire mesh conveyor through feed conveyor or bottles are pushed manually from feed table. This saves manpower as bottles are feed into pockets automatically. The automatic unloading mechanism consists of unloading bottle continues on to Turn Table (Optional).

OPERATION:

Three-cycle rinsing allows flexibilities of various wash cycles such as fresh water, dematerialized water etc. as per the rinsing requirement of bottle. All the pumps are made of SS and all the water contact parts are made of SS 316 on a heavy base of MS structure.

In tunnel design is such that separation is maintained between feeding zone and discharge zone of the cleaned containers. All the mechanical drives are separated and isolated from the washing zone. Approved materials only are used for construction, together with a careful choice of components, thereby taking in to consideration all aspects of sanitation and consequence complying with the pharmaceutical G.M.P. requirements.

The quality of rinsing is ensured through 3 sets of inner and 2 sets of outer nozzles accurately placed to direct the jet at center of the bottle and the bottle comes out with water totally drained with minimum droplets of water.

TECHNICAL SPECIFICATION:
ModelPLBW-240
Output / Hour*Up to 15000 Bottle
No. of Pocket Across20
Power**
Consumption
Main motor1 HP / 415 Volts / 50 Hz
Pump Two Nos.0.5 HP / 415 Volts / 50 Hz x 2 Nos
Electrical Heater3 Kw.
Wash Cycle4 Inner + 1 Outer + 1 Air
Machine Dimension2740 mm (L) x 2130 mm (W) x 1675 mm (H)
Case Dimensions2950 mm (L) x 2350 mm (W) x 1875 mm (H)
Net Weight1250 Kgs
Gross Weight1750 Kgs
INPUT SPECIFICATIONS:
Round Shape(A) Ø 30 mm to Ø 65 mm***
(B) 58 mm to 190 mm*** (Height option for other bottle height available)
(C) 20 to 55 Neck Diameter***
Flat / Square(A) 30 mm to 100 mm (Length)***
(B) 10 mm to 50 mm (Width)***
(C) 58 mm x 190 mm (Height option for other bottle height available)
NOTE :

* Depends on container size.

** We can supply as per customer requirements.

*** With help of change parts.

SALIENT FEATURES:
  • High-pressure pump ensure proper wash of bottle.
  • Contact parts S.S. 316 Non Contact parts S.S. 304 Including the basic frame.
  • Suitable for Round and Flat Glass Bottle (with help of change parts).
  • Water re-cycling provided as per customer’s SOP.
OPTIONAL FEATURES:
  • For high volume container wash provided high pressure centrifugal pump
  •  For high volume container wash provided high pressure centrifugal pump
  • Fully functional PLC with Touch Screen for the whole operation of the machine
  • Printing Facility, Quick Recipes, Batch Details, Password Protection, etc. through PLC
UTILITY REQUIREMENT:
Electrical supply3 Phase + Neutral + Earthing
Air Consumptions2.5 Kg Air Pressure / 20 CFM
